Soldering and SMT Rework

Metcal

SMARTHEAT TECHNOLOGY

Because our systems use SmartHeat Technology:

  • They are incapable of overshoot
  • They do not need any calibration, ever
  • They deliver high throughput at lower temperatures
  • They offer an easy to use, versatile conduction tool for all soldering and rework applications

Other advantages are:

  • Easiest tip cartridge swap in the industry- Our tip cartridges slip in and out with no tools, and heat-up extra fast
  • Our hand-pieces are lightweight and ergonomic with a short tip-to-grip for precise control
  • Optimised bench space with small footprint
  • Automatic time-out increasing tip cartridge life

MELSS offers Soldering and  SMT Rework Products

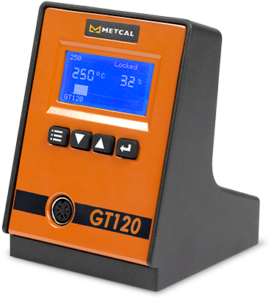

GT 90 / GT 120

Adjustable Soldering Station are part of Soldering and SMT Rework offered by MELSS

GT soldering

The GT Series applies Metcal’s expertise in inductive heating to an adjustable temperature soldering system for the time. This drives high-performance through improved:

  • Time to temperature
  • Temperature stability
  • Thermal recovery

Features and Benefits of Soldering Station

  • Inductive heating systems offering best in class performance
  • Adjustable Temperature
  • Intuitive 4 button user interface
  • Wide variety of cartridge and tip options
  • Compact to minimize the workbench footprint
  • Programmable password lock-out and temperature range limits
  • Standby and sleep settings to increase tip life
  • USB port to power accessories and firmware updates
METCAL Soldering Station  comprises of:
1 : Power Station
2 :  Hand-Piece
3 : Work Stand
4 : Cartridge/Tip-Remover
5 :  Power Adapter

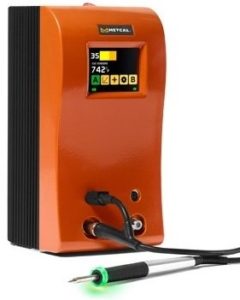

CV-5210

Connection Validation Soldering Station

Introducing Connection Validation Soldering Station,  the embedded, self-regulating heater delivers the right amount of power based on the requirements of the solder joint. This provides a fast, safe and repeatable process with no calibration required.

METCAL’s Connection Validation (CV) evaluates the quality of the solder joint by calculating the intermetallic compound formation and provides closed loop feedback to the operator. CV provides feedback to the operator via the LED light ring integrated in the hand-piece. It takes the risk associated with the variables involved in the soldering activity and removes the success and failure determination of a good solder joint out of the hands of the operator. CV complements the skill of the operator to judge the quality of a solder joint by introducing an objective method of evaluating solder joint quality. This systemic and objective approach provides repeatability and a measurable standard to the soldering process.

Features and Benefits of CV Soldering Station

• SmartHeat Power on Demand Technology
• Patented Connection Validation IMC Formation Technology

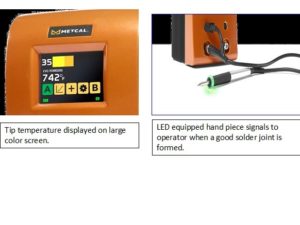

• 2.8” color touchscreen with bold graphics
• Communications Port for process traceability data and firmware graphics
• Precise tip temperature display
• Integrated Net Power Meter and power graph
• Patented Chip-in-Cartridge technology
   ° Closed loop bi-directional communication
   ° Stores and records cartridge attributes
   ° Provides traceability information
   ° Protects power supply from non-conforming cartridges
   ° Backwards compatible with MX series power supplies

• Password protection

METCAL CV Soldering Station comprises of:

CV-PS5200 : Power supply
CV-UK7 : Upgrade Kit, Solder Wire Feeder Advanced Hand piece, Work-stand and Solder Wire Feeder Unit
CV-H7-HTD : High Thermal Demand Hand-piece for CV Solder Wire Feeder System
CV-UK7-HTD : Upgrade Kit, Solder Wire Feeder HTD Hand-piece, Work-stand and  Solder Wire Feeder Unit

*CV-H7-HTD Not Recommend for use with the CV-500 Connection Validation System.

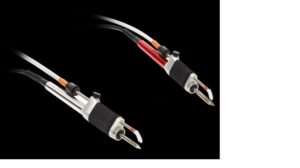

Solder Wire Feeder Hand-pieces CV-5200 Series
Hand-pieces and Monitoring Software

You’ll get:
Power demand
Tip temperature
Solder time

Intermetallic Compound Formation (IMC Formation)*
Metcal’s Solder Wire Feeder System adds control and convenience to your soldering process.

The digital controls, high performance, and its ability to handle multiple solder wire diameters provide repeatability and functionality to your process.

Two hand-pieces available, for standard CV applications and high thermal demand applications.

Key Features & Benefits:

  • Improved temperature control: Metcal’s SmartHeat® inside means lower risk of overshooting delicate components
  • Very fast heat-up speed means you can get to your next task even faster
  • Compatible with solder diameters from 0.3mm to 1.27mm
  • Compatible with CVC and SMC series cartridges for standard applications and HCV series cartridges for high thermal demand applications. Available in 700, 800, and 900 series temperatures.

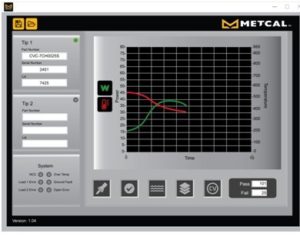

Introducing all the new CV Monitoring Software

Improve your solder process traceability and create a performance baseline using CV’s intelligent cartridges plus CV-5000 Monitor software. Using our Connection Validation patented technology, CV Monitor software allows you to capture solder process information over time for each joint when attached to the communication port.

Now that you have a baseline, you can quickly analyze your soldering performance, identify changes in your solder conditions, and make changes to your process. Download the free CV-5000 Monitor software and start monitoring your process.

MELSS offers Soldering and  SMT Rework Products

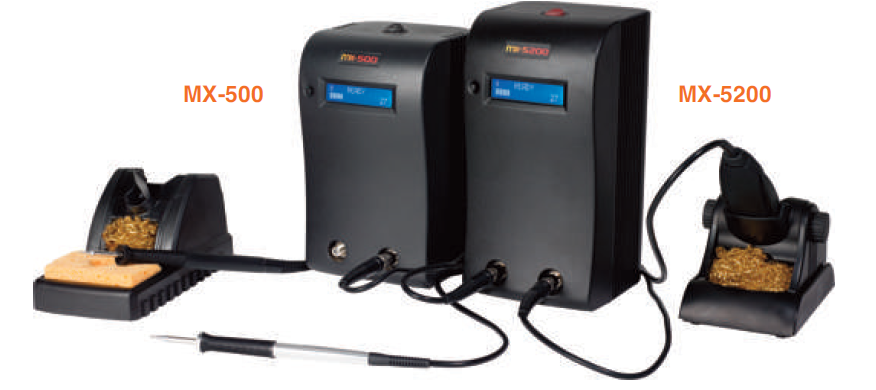

MX-5210 Soldering Station and Rework System

New dual port simultaneous soldering and rework system is highly effective for soldering applications including: lead-free, high mass components or boards, thermally sensitive components requiring low operating temperature, high volume production soldering and touch-up soldering operations. In addition, the MX-5210 can be used for conduction rework of SMDs when using SMTC series soldering cartridges simultaneously.

Features and Benefits Soldering Station & Rework System

  • Can be operated with two hand pieces dynamically sharing the 80 watts output power based on demand adding even more application flexibility and speed
  • Configured with the Metcal advanced soldering and rework hand-piece
  • Microprocessor controlled power supply providing more power for challenges such as high mass components, multi-layered boards and lead-free solders
  • Improved ergonomics with lightweight hand-pieces
  • Greater process control with SmartHeat® Technology
  • ESD safe with incoming AC ground monitoring circuitry
  • Built-in power indication meter with digital display and bar graph that dynamically provides the operator with feedback on the status of the soldering operation
  • Metcal TipSaver™ workstand improves tip life with its ’Auto-Sleep’ function

METCAL’s Soldering Station  comprises of:

MX-PS5200 : Power supply, 100 to 240 VAC input, dual switch port with LCD display
MX-H1-AV : Metcal Advanced™ hand-piece, soldering and rework with one cartridge removal pad
MX-W1AV : Workstand for Metcal Advanced™ hand-piece, soldering and rework with one sponge and one brass pad

MX-5241 Tweezers, Soldering and Rework System

Product comprises of:

MX-PS5200 : Power supply, 100 to 240 VAC input, dual switch port with LCD display
MX-PTZ : Tweezers hand-piece with one cartridge removal pad
MX-H1-AV : Metcal Advanced™ hand-piece with one cartridge removal pad
MX-W4PT : Workstand for tweezers hand-piece with one sponge and one brass pad
MX-W1AV : Workstand for Metcal Advanced™ hand-piece, soldering and rework with one sponge and one brass pad

MX-5220 Ultra Fine Soldering and Rework System

Product comprises of:

MX-PS5200 : Power supply, 100 to 240 VAC input, dual switch port with LCD display
MX-H2-UF : Metcal UltraFine™ hand-piece, soldering and rework with one cartridge removal pad
MX-W1AV : Metcal TipSaver™ workstand with one sponge and one brass pad

MX-5251 Soldering, De-soldering and Rework System

Product comprises of:

MX-PS5200 : Power supply, 100 to 240 VAC input, dual switch port with LCD display
MX-H1-AV : Metcal Advanced™ hand-piece, soldering and rework with one cartridge removal pad
MX-DS1 : De-soldering gun hand-piece with one cartridge removal pad
MX-W1AV : Workstand for Metcal Advanced™ hand-piece, soldering and rework with one sponge and one brass pad
MX-W5DS : Workstand for de-soldering gun hand-piece with one sponge and one brass pad
AC-CB1 : De-solder chamber cleaning brush
AC-CB2 : Tube cleaning brush
MX-DCF1 : Chamber liner and filter pack
AC-TC : De-solder tip cleaner
MX-RM8E : De-soldering cord
MX-DAH4 : ESD air hose with fitting

MX-5250 De-soldering System

Product comprises of:

MX-PS5200 : Power supply, 100 to 240 VAC input, dual switch port with LCD display
MX-DS1 : De-soldering gun hand-piece with one cartridge removal pad
MX-W5DS : Workstand for de-soldering gun hand-piece with one sponge and one brass pad
AC-CB1 : De-solder chamber cleaning brush
AC-CB2 : Tube cleaning brush
MX-DCF1 : Chamber liner and filter pack
AC-TC : De-solder tip cleaner
MX-RM8E : De-soldering cord
MX-DAH4 : ESD air hose with fitting

MX-5211 Soldering and Rework System with 2 Hand-pieces

Product comprises of:

MX-PS5200 : Power supply, 100 to 240 VAC input, dual switch port with LCD display
MX-H1-AV : Two Metcal Advanced™ hand-pieces, soldering and rework with two cartridge removal pads
MX-W1AV : Two workstands for Metcal Advanced™ hand-piece, soldering and rework with two sponges and two brass pads

MELSS offers Soldering and  SMT Rework Products

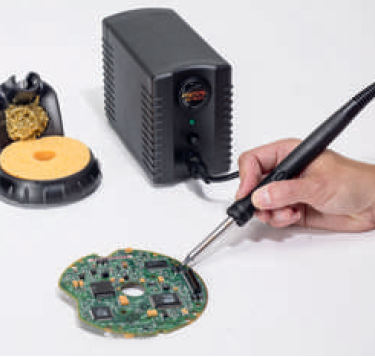

METCAL’s Soldering Station PS-900 packs power and provides exceptional thermal control into a small benchtop footprint.

Features and Benefits of Soldering Station:

  • SmartHeat® temperature control
  • Ergonomic, lightweight handle
  • Rugged cast aluminum housing
  • Added plating thickness to tips
  • Low cost, quick-change heater coil

METCAL’s Soldering Station Comprises of:

PS-PW900 :  Power Supply
 PS-HC3 :  Hand-piece with long cord with Coil Assembly
 SFV-CH15A :  Chisel soldering tip 1.5mm (.06″)
 WS2-NS :  Workstand
 AC-CP2 :  Tip removal pad

Tips / Cartridges Series compatible with this system:

MELSS offers Soldering and  SMT Rework Products

MFR-1110  Single Output Soldering Station & Rework System – Cartridge Hand-piece

METCAL’s Soldering Station, MFR-1100 Single Output Series is highly versatile in that it can be used with either a soldering tip, cartridge or tweezers and offers a choice of four hand-pieces. The MFR-1110 comes with one cartridge soldering hand-piece. The cartridge hand-piece uses small diameter cartridges for easy access and includes a full range of cartridges, including SMD rework.

Features and Benefits of Soldering Station:

  • SmartHeat® Technology provides exceptional power for high thermal demand applications.
  • Four hand-pieces available for increased application solutions for soldering and rework on one system
  • Each hand-piece has a comprehensive range of cartridges or tips for maximum flexibility
  • Hand-pieces are ergonomic for operator safety and comfort
  • Small Bench Top foot print
  • Can be combined and locked with its brother the MFR-2200 dual output series for increased application solutions for soldering and rework.

METCAL’s Soldering Station Comprises of:

 MFR-PS1100 :  MFR Single Output Power Supply
 MFR-H1-SC2 :  New Style MFR Soldering Cartridge Hand-piece
 WS1 :  Soldering Workstand compatible with MFR-H1- SC Hand-piece

MFR-1120  Single Output Soldering & Rework System – Tip Hand-piece

Product Comprises of:

 MFR-PS1100 :  MFR Single Output Power Supply
 MFR-H2-ST2 :  New Style Tip soldering Hand-piece for the MFR Series
 WS1 :  Soldering Workstand compatible with MFR-H1-SC Hand-piece

MFR-1150   Single Output Desolder System with Venturi Workstand

MFR-PS1100 :  MFR Single Output Power Supply
 MFR-H5-DS :  Desoldering Hand-piece for the MFR Series
 MFR-WSDSX :  Desoldering Workstand with venturi compatible with MFR-H5- DS Hand-piece
 MFR-FTKIT :  Fittings and air hose kit
 AC-TC :  Desoldering Tip Cleaner

MFR-1140  Single Output Soldering & Rework System – Tweezer Hand-piece

 MFR-PS1100 :  MFR Single Output Power Supply
 MFR-H4-TW :  Tweezer Hand-piece for the MFR Series
 MFR-WSPT :  Soldering Workstand compatible with MFR-H4-TW Hand-piece

MFR-1161  Single Output Soldering & Rework System – Two Cartridge Hand-pieces

 MFR-PS1100 :  MFR Single Output Power Supply
 New Style
MFR-H1-SC2
:  Cartridge soldering Hand-piece for the MFR Series
 MFR-H6-SSC :  SSC Cartridge soldering Hand-piece for the MFR Series
 WS1 :  Soldering Workstand compatible with MFR-H1-SC2 Hand-piece
 WS2 :  Soldering Workstand compatible with PS-HC3 Hand-piece

MELSS offers Soldering and  SMT Rework Products

METCAL’s Soldering Station,  MFR-1350 features a soldering hand-piece and a desoldering gun. The power supply has an internal pump providing 0.7 bar of vacuum suction force combined with Smartheat® technology that makes soldering, rework and through-hole desoldering easy and safe.

Features and Benefits of Soldering Station:

  • Self-contained powerful pump
  • 2 in 1 ergonomic and flexible hand-piece: pencil or pistol
  • Collection chamber with larger capacity
  • Smart collection chamber for quick and easy change
  • Dual switchable output
  • Powered by Smartheat® Technology

Tips / Cartridges Series compatible with this system

SxP Soldering Cartridges
RxP Rework Cartridges
DxP Desoldering Cartridges

METCAL’s Soldering Station Comprises of:

MFR-PS1300 : Switched Dual Output Power Supply with Internal Pump
MFR-H5-DS : Desolder Hand-piece, with selectable grip, and cord
MFR-H1-SC2 : New Style Solder Cartridge Hand-piece, with cord
MFR-WSDSU : Universal Workstand for Desolder Hand-piece
WS1 : Universal Workstand for Solder Hand-piece

MFR-1350

The MFR-1350 features an internal pump providing 0.7 bar of vacuum suction force combined with Smartheat® technology that makes through-hole desoldering easy and keeps your products safe from board damage.

Features and Benefits:

  • Self-contained powerful pump
  • 2 in 1 ergonomic and flexible hand-piece: pencil or pistol
  • Collection chamber with larger capacity
  • Smart collection chamber for quick and easy change
  • Dual switchable output
  • Powered by Smartheat® Technology

Product comprises of:

MFR-PS1300 : Switched Dual Output Power Supply with Internal Pump
MFR-H5-DS : Desolder Hand-piece, with selectable grip, and cord
MFR-WSDSU : Universal Workstand for Desolder Hand-piece

NOTE: No tip/cartridge included

METCAL – MFR-2241   Dual Output Soldering  Station & Rework System – One Tweezer Hand-piece and one Cartridge Hand-piece

Like the MFR-1100 Series, the MFR-2200 offers the same choice of multiple hand-pieces with two ports. Flexibility can be increased by locking both systems together. The MFR-2241 includes a Tweezer Hand-piece and a Soldering Cartridge Hand-piece.

Features and Benefits of Soldering Station:

  • SmartHeat® Technology provides exceptional power for high thermal demand applications.
  • Single or Dual simultaneous outputs allow for single or dual hand-piece use.
  • Four hand-pieces available for increased application solutions for soldering and rework on one system.
  • Each hand-piece has a comprehensive range of cartridges or tips for maximum flexibility.
  • Hand-pieces are ergonomic for operator safety and comfort

METCAL Soldering Station Comprises of:

MFR-H4-TW : Hand-piece, Tweezers Cartridge
MFR-PS2200 : Power Supply, Dual Simultaneous Output
MFR-WSPT : Workstand for Tweezers Hand-piece
MFR-H1-SC : Hand-piece, Soldering Cartridge
WS1 : Sleep Workstand

MFR-2211  Dual Output Soldering & Rework System – Two Cartridge Hand-pieces

Product Comprises of:

MFR-H1-SC2 : New Style Hand-piece, Soldering Cartridge (2)
MFR-PS2200 : Power Supply, Dual Simultaneous Output
WS1 : Auto Sleep Workstand (2)

MELSS offers Soldering and  SMT Rework Products

MX-500S

Metcal’s MX-500 Soldering and Rework System has been reimagined, adding features and a new look to a bench top icon.

The system utilizes SmartHeat® Technology, wherein each cartridge is equipped with a self-regulating heater which ‘senses’ its own temperature and closely maintains its pre-set idle temperature for the life of the heater-tip. The tip temperature is determined by the inherent metallurgical properties of the heater; no external adjustment or equipment is required. The MX-500 retains switchable dual port, 40W operation while introducing numerous new features in a new housing.

FEATURES AND BENEFITS

  • Integrated Power Indication Meter: a built in net power meter which will display a graphical and numerical representation of the power applied to the cartridge.
  • User Programmable PowerSave Mode: the time to enter PowerSave Mode is adjustable from 10 to 120 minutes.
  • Ground Fault Interrupt: AC ground monitor detects power line ground failures and immediately alerts the operator and shuts down the system. Only after the power line ground has been restored, can the MX-500 be restarted and soldering operations can be resumed.
  • Universal Power Supply: automatically senses the input line voltage and adjusts accordingly, which allows for worldwide operation without adaptors or a change in performance.
  • Compatibility with all MX products: the MX-500 redesign allows full compatibility with existing and previous MX upgrade kits, tip-cartridges, hand-pieces and accessories.
  • Greater process control with SmartHeat® Technology
  • Reduced space requirements

MX-500S Soldering / Rework System includes:

  • Power supply
  • MX-RM3E soldering and rework hand-piece with cartridge removal pad
  • WS1 sleeper workstand

MX-500SPT Soldering / Tweezer Rework System includes:

  • Power supply
  • MX-RM3E soldering and rework hand-piece with cartridge removal pad,/li>
  • WS1 sleeper workstand for MX-RM3E
  • MX-PTZ Precision Tweezer hand-piece with cartridge removal pad
  • MX-W4PT Tip Saver workstand for MX-PTZ

MX-500DS Soldering / Desoldering System includes:

  • Power supply
  • MX-RM3E soldering and rework hand-piece with cartridge removal pad
  • WS1 sleeper workstand for the RM3E
  • MX-DS1 Desoldering Gun with cartridge removal pad
  • MX-W5DS Tip Saver workstand for the MX-DS1
  • MX-RM8E: Desoldering Cord
  • MX-DAH4: ESD Air Hose with Fitting
  • AC-CB1: Cleaning Brush
  • AC-CB2: Tube Cleaning Brush
  • MX-DCF1: Chamber Liner and Filter Pack
  • AC-TC: Desoldering Tip Cleaner

MX-500AV Soldering / Rework System includes:

  • Power supply
  • MX-H1-AV: Metcal Advanced™ Hand-piece, Soldering and Rework with one cartridge removal pad
  • MX-W1AV: Workstand for Metcal Advanced™ Hand-piece, Soldering and Rework with one sponge and one brass pad

MX-500AV Soldering / Rework System includes:

  • Power supply
  • MX-H2-UF: Metcal UltraFine™ Hand-piece, Soldering and Rework with one cartridge removal pad
  • MX-W1AV: Workstand for Metcal Advanced™ Hand-piece, Soldering and Rework with one sponge and one brass pad

Soldering and SMT Rework Systems are offered by MELSS

Hand Soldering, Desoldering, & Rework Systems
Ultimate Performance Through Inductive Technology

CV-5210 & CV-510 Connection Validation Soldering Systems

Metcal offers two unique Connection Validation Soldering Systems featuring patented Connection Validation IMC formation technology, and SmartHeat power-on-demand

The CV-IOT Gateway Module with Connection Validation systems enables you to monitor and capture data at every station on your network, for maximum productivity and process control

GT90 & GT120 Best-in-Class Adjustable Temperature Soldering Systems
Metcal’s first adjustable soldering stations are high performance single-iron units with replaceable tip and cartridge options

GT 90 / GT 120

Adjustable Soldering Station are part of Soldering and SMT Rework offered by MELSS

GT soldering

The GT Series applies Metcal’s expertise in inductive heating to an adjustable temperature soldering system for the time. This drives high-performance through improved:

  • Time to temperature
  • Temperature stability
  • Thermal recovery

Features and Benefits of Soldering Station

  • Inductive heating systems offering best in class performance
  • Adjustable Temperature
  • Intuitive 4 button user interface
  • Wide variety of cartridge and tip options
  • Compact to minimize the workbench footprint
  • Programmable password lock-out and temperature range limits
  • Standby and sleep settings to increase tip life
  • USB port to power accessories and firmware updates
METCAL Soldering Station  comprises of:
1 : Power Station
2 :  Hand-Piece
3 : Work Stand
4 : Cartridge/Tip-Remover
5 :  Power Adapter

CV-5210

Connection Validation Soldering Station

Introducing Connection Validation Soldering Station,  the embedded, self-regulating heater delivers the right amount of power based on the requirements of the solder joint. This provides a fast, safe and repeatable process with no calibration required.

METCAL’s Connection Validation (CV) evaluates the quality of the solder joint by calculating the intermetallic compound formation and provides closed loop feedback to the operator. CV provides feedback to the operator via the LED light ring integrated in the hand-piece. It takes the risk associated with the variables involved in the soldering activity and removes the success and failure determination of a good solder joint out of the hands of the operator. CV complements the skill of the operator to judge the quality of a solder joint by introducing an objective method of evaluating solder joint quality. This systemic and objective approach provides repeatability and a measurable standard to the soldering process.

Features and Benefits of CV Soldering Station

• SmartHeat Power on Demand Technology
• Patented Connection Validation IMC Formation Technology
• 2.8” color touchscreen with bold graphics
• Communications Port for process traceability data and firmware graphics
• Precise tip temperature display
• Integrated Net Power Meter and power graph
• Patented Chip-in-Cartridge technology
   ° Closed loop bi-directional communication
   ° Stores and records cartridge attributes
   ° Provides traceability information
   ° Protects power supply from non-conforming cartridges
   ° Backwards compatible with MX series power supplies

• Password protection

METCAL CV Soldering Station comprises of:

CV-PS5200 : Power supply
CV-UK7 : Upgrade Kit, Solder Wire Feeder Advanced Hand piece, Work-stand and Solder Wire Feeder Unit
CV-H7-HTD : High Thermal Demand Hand-piece for CV Solder Wire Feeder System
CV-UK7-HTD : Upgrade Kit, Solder Wire Feeder HTD Hand-piece, Work-stand and  Solder Wire Feeder Unit

*CV-H7-HTD Not Recommend for use with the CV-500 Connection Validation System.

Solder Wire Feeder Hand-pieces CV-5200 Series
Hand-pieces and Monitoring Software

You’ll get:
Power demand
Tip temperature
Solder time

Intermetallic Compound Formation (IMC Formation)*
Metcal’s Solder Wire Feeder System adds control and convenience to your soldering process.

The digital controls, high performance, and its ability to handle multiple solder wire diameters provide repeatability and functionality to your process.

Two hand-pieces available, for standard CV applications and high thermal demand applications.

Key Features & Benefits:

  • Improved temperature control: Metcal’s SmartHeat® inside means lower risk of overshooting delicate components
  • Very fast heat-up speed means you can get to your next task even faster
  • Compatible with solder diameters from 0.3mm to 1.27mm
  • Compatible with CVC and SMC series cartridges for standard applications and HCV series cartridges for high thermal demand applications. Available in 700, 800, and 900 series temperatures.

Introducing all the new CV Monitoring Software

Improve your solder process traceability and create a performance baseline using CV’s intelligent cartridges plus CV-5000 Monitor software. Using our Connection Validation patented technology, CV Monitor software allows you to capture solder process information over time for each joint when attached to the communication port.

Now that you have a baseline, you can quickly analyze your soldering performance, identify changes in your solder conditions, and make changes to your process. Download the free CV-5000 Monitor software and start monitoring your process.

MELSS offers Soldering and  SMT Rework Products

MX-5210 Soldering Station and Rework System

New dual port simultaneous soldering and rework system is highly effective for soldering applications including: lead-free, high mass components or boards, thermally sensitive components requiring low operating temperature, high volume production soldering and touch-up soldering operations. In addition, the MX-5210 can be used for conduction rework of SMDs when using SMTC series soldering cartridges simultaneously.

Features and Benefits Soldering Station & Rework System

  • Can be operated with two hand pieces dynamically sharing the 80 watts output power based on demand adding even more application flexibility and speed
  • Configured with the Metcal advanced soldering and rework hand-piece
  • Microprocessor controlled power supply providing more power for challenges such as high mass components, multi-layered boards and lead-free solders
  • Improved ergonomics with lightweight hand-pieces
  • Greater process control with SmartHeat® Technology
  • ESD safe with incoming AC ground monitoring circuitry
  • Built-in power indication meter with digital display and bar graph that dynamically provides the operator with feedback on the status of the soldering operation
  • Metcal TipSaver™ workstand improves tip life with its ’Auto-Sleep’ function

METCAL’s Soldering Station  comprises of:

MX-PS5200 : Power supply, 100 to 240 VAC input, dual switch port with LCD display
MX-H1-AV : Metcal Advanced™ hand-piece, soldering and rework with one cartridge removal pad
MX-W1AV : Workstand for Metcal Advanced™ hand-piece, soldering and rework with one sponge and one brass pad

MX-5241 Tweezers, Soldering and Rework System

Product comprises of:

MX-PS5200 : Power supply, 100 to 240 VAC input, dual switch port with LCD display
MX-PTZ : Tweezers hand-piece with one cartridge removal pad
MX-H1-AV : Metcal Advanced™ hand-piece with one cartridge removal pad
MX-W4PT : Workstand for tweezers hand-piece with one sponge and one brass pad
MX-W1AV : Workstand for Metcal Advanced™ hand-piece, soldering and rework with one sponge and one brass pad

MX-5220 Ultra Fine Soldering and Rework System

Product comprises of:

MX-PS5200 : Power supply, 100 to 240 VAC input, dual switch port with LCD display
MX-H2-UF : Metcal UltraFine™ hand-piece, soldering and rework with one cartridge removal pad
MX-W1AV : Metcal TipSaver™ workstand with one sponge and one brass pad

MX-5251 Soldering, De-soldering and Rework System

Product comprises of:

MX-PS5200 : Power supply, 100 to 240 VAC input, dual switch port with LCD display
MX-H1-AV : Metcal Advanced™ hand-piece, soldering and rework with one cartridge removal pad
MX-DS1 : De-soldering gun hand-piece with one cartridge removal pad
MX-W1AV : Workstand for Metcal Advanced™ hand-piece, soldering and rework with one sponge and one brass pad
MX-W5DS : Workstand for de-soldering gun hand-piece with one sponge and one brass pad
AC-CB1 : De-solder chamber cleaning brush
AC-CB2 : Tube cleaning brush
MX-DCF1 : Chamber liner and filter pack
AC-TC : De-solder tip cleaner
MX-RM8E : De-soldering cord
MX-DAH4 : ESD air hose with fitting

MX-5250 De-soldering System

Product comprises of:

MX-PS5200 : Power supply, 100 to 240 VAC input, dual switch port with LCD display
MX-DS1 : De-soldering gun hand-piece with one cartridge removal pad
MX-W5DS : Workstand for de-soldering gun hand-piece with one sponge and one brass pad
AC-CB1 : De-solder chamber cleaning brush
AC-CB2 : Tube cleaning brush
MX-DCF1 : Chamber liner and filter pack
AC-TC : De-solder tip cleaner
MX-RM8E : De-soldering cord
MX-DAH4 : ESD air hose with fitting

MX-5211 Soldering and Rework System with 2 Hand-pieces

Product comprises of:

MX-PS5200 : Power supply, 100 to 240 VAC input, dual switch port with LCD display
MX-H1-AV : Two Metcal Advanced™ hand-pieces, soldering and rework with two cartridge removal pads
MX-W1AV : Two workstands for Metcal Advanced™ hand-piece, soldering and rework with two sponges and two brass pads

MELSS offers Soldering and  SMT Rework Products

METCAL’s Soldering Station PS-900 packs power and provides exceptional thermal control into a small benchtop footprint.

Features and Benefits of Soldering Station:

  • SmartHeat® temperature control
  • Ergonomic, lightweight handle
  • Rugged cast aluminum housing
  • Added plating thickness to tips
  • Low cost, quick-change heater coil

METCAL’s Soldering Station Comprises of:

PS-PW900 :  Power Supply
 PS-HC3 :  Hand-piece with long cord with Coil Assembly
 SFV-CH15A :  Chisel soldering tip 1.5mm (.06″)
 WS2-NS :  Workstand
 AC-CP2 :  Tip removal pad

Tips / Cartridges Series compatible with this system:

MELSS offers Soldering and  SMT Rework Products

MFR-1110  Single Output Soldering Station & Rework System – Cartridge Hand-piece

METCAL’s Soldering Station, MFR-1100 Single Output Series is highly versatile in that it can be used with either a soldering tip, cartridge or tweezers and offers a choice of four hand-pieces. The MFR-1110 comes with one cartridge soldering hand-piece. The cartridge hand-piece uses small diameter cartridges for easy access and includes a full range of cartridges, including SMD rework.

Features and Benefits of Soldering Station:

  • SmartHeat® Technology provides exceptional power for high thermal demand applications.
  • Four hand-pieces available for increased application solutions for soldering and rework on one system
  • Each hand-piece has a comprehensive range of cartridges or tips for maximum flexibility
  • Hand-pieces are ergonomic for operator safety and comfort
  • Small Bench Top foot print
  • Can be combined and locked with its brother the MFR-2200 dual output series for increased application solutions for soldering and rework.

METCAL’s Soldering Station Comprises of:

 MFR-PS1100 :  MFR Single Output Power Supply
 MFR-H1-SC2 :  New Style MFR Soldering Cartridge Hand-piece
 WS1 :  Soldering Workstand compatible with MFR-H1- SC Hand-piece

MFR-1120  Single Output Soldering & Rework System – Tip Hand-piece

Product Comprises of:

 MFR-PS1100 :  MFR Single Output Power Supply
 MFR-H2-ST2 :  New Style Tip soldering Hand-piece for the MFR Series
 WS1 :  Soldering Workstand compatible with MFR-H1-SC Hand-piece

MFR-1150   Single Output Desolder System with Venturi Workstand

MFR-PS1100 :  MFR Single Output Power Supply
 MFR-H5-DS :  Desoldering Hand-piece for the MFR Series
 MFR-WSDSX :  Desoldering Workstand with venturi compatible with MFR-H5- DS Hand-piece
 MFR-FTKIT :  Fittings and air hose kit
 AC-TC :  Desoldering Tip Cleaner

MFR-1140  Single Output Soldering & Rework System – Tweezer Hand-piece

 MFR-PS1100 :  MFR Single Output Power Supply
 MFR-H4-TW :  Tweezer Hand-piece for the MFR Series
 MFR-WSPT :  Soldering Workstand compatible with MFR-H4-TW Hand-piece

MFR-1161  Single Output Soldering & Rework System – Two Cartridge Hand-pieces

 MFR-PS1100 :  MFR Single Output Power Supply
 New Style
MFR-H1-SC2
:  Cartridge soldering Hand-piece for the MFR Series
 MFR-H6-SSC :  SSC Cartridge soldering Hand-piece for the MFR Series
 WS1 :  Soldering Workstand compatible with MFR-H1-SC2 Hand-piece
 WS2 :  Soldering Workstand compatible with PS-HC3 Hand-piece

MELSS offers Soldering and  SMT Rework Products

METCAL’s Soldering Station,  MFR-1350 features a soldering hand-piece and a desoldering gun. The power supply has an internal pump providing 0.7 bar of vacuum suction force combined with Smartheat® technology that makes soldering, rework and through-hole desoldering easy and safe.

Features and Benefits of Soldering Station:

  • Self-contained powerful pump
  • 2 in 1 ergonomic and flexible hand-piece: pencil or pistol
  • Collection chamber with larger capacity
  • Smart collection chamber for quick and easy change
  • Dual switchable output
  • Powered by Smartheat® Technology

Tips / Cartridges Series compatible with this system

SxP Soldering Cartridges
RxP Rework Cartridges
DxP Desoldering Cartridges

METCAL’s Soldering Station Comprises of:

MFR-PS1300 : Switched Dual Output Power Supply with Internal Pump
MFR-H5-DS : Desolder Hand-piece, with selectable grip, and cord
MFR-H1-SC2 : New Style Solder Cartridge Hand-piece, with cord
MFR-WSDSU : Universal Workstand for Desolder Hand-piece
WS1 : Universal Workstand for Solder Hand-piece

MFR-1350

The MFR-1350 features an internal pump providing 0.7 bar of vacuum suction force combined with Smartheat® technology that makes through-hole desoldering easy and keeps your products safe from board damage.

Features and Benefits:

  • Self-contained powerful pump
  • 2 in 1 ergonomic and flexible hand-piece: pencil or pistol
  • Collection chamber with larger capacity
  • Smart collection chamber for quick and easy change
  • Dual switchable output
  • Powered by Smartheat® Technology

Product comprises of:

MFR-PS1300 : Switched Dual Output Power Supply with Internal Pump
MFR-H5-DS : Desolder Hand-piece, with selectable grip, and cord
MFR-WSDSU : Universal Workstand for Desolder Hand-piece

NOTE: No tip/cartridge included

METCAL – MFR-2241   Dual Output Soldering  Station & Rework System – One Tweezer Hand-piece and one Cartridge Hand-piece

Like the MFR-1100 Series, the MFR-2200 offers the same choice of multiple hand-pieces with two ports. Flexibility can be increased by locking both systems together. The MFR-2241 includes a Tweezer Hand-piece and a Soldering Cartridge Hand-piece.

Features and Benefits of Soldering Station:

  • SmartHeat® Technology provides exceptional power for high thermal demand applications.
  • Single or Dual simultaneous outputs allow for single or dual hand-piece use.
  • Four hand-pieces available for increased application solutions for soldering and rework on one system.
  • Each hand-piece has a comprehensive range of cartridges or tips for maximum flexibility.
  • Hand-pieces are ergonomic for operator safety and comfort

METCAL Soldering Station Comprises of:

MFR-H4-TW : Hand-piece, Tweezers Cartridge
MFR-PS2200 : Power Supply, Dual Simultaneous Output
MFR-WSPT : Workstand for Tweezers Hand-piece
MFR-H1-SC : Hand-piece, Soldering Cartridge
WS1 : Sleep Workstand

MFR-2211  Dual Output Soldering & Rework System – Two Cartridge Hand-pieces

Product Comprises of:

MFR-H1-SC2 : New Style Hand-piece, Soldering Cartridge (2)
MFR-PS2200 : Power Supply, Dual Simultaneous Output
WS1 : Auto Sleep Workstand (2)

MELSS offers Soldering and  SMT Rework Products

MX-500S

Metcal’s MX-500 Soldering and Rework System has been reimagined, adding features and a new look to a bench top icon.

The system utilizes SmartHeat® Technology, wherein each cartridge is equipped with a self-regulating heater which ‘senses’ its own temperature and closely maintains its pre-set idle temperature for the life of the heater-tip. The tip temperature is determined by the inherent metallurgical properties of the heater; no external adjustment or equipment is required. The MX-500 retains switchable dual port, 40W operation while introducing numerous new features in a new housing.

FEATURES AND BENEFITS

  • Integrated Power Indication Meter: a built in net power meter which will display a graphical and numerical representation of the power applied to the cartridge.
  • User Programmable PowerSave Mode: the time to enter PowerSave Mode is adjustable from 10 to 120 minutes.
  • Ground Fault Interrupt: AC ground monitor detects power line ground failures and immediately alerts the operator and shuts down the system. Only after the power line ground has been restored, can the MX-500 be restarted and soldering operations can be resumed.
  • Universal Power Supply: automatically senses the input line voltage and adjusts accordingly, which allows for worldwide operation without adaptors or a change in performance.
  • Compatibility with all MX products: the MX-500 redesign allows full compatibility with existing and previous MX upgrade kits, tip-cartridges, hand-pieces and accessories.
  • Greater process control with SmartHeat® Technology
  • Reduced space requirements

MX-500S Soldering / Rework System includes:

  • Power supply
  • MX-RM3E soldering and rework hand-piece with cartridge removal pad
  • WS1 sleeper workstand

MX-500SPT Soldering / Tweezer Rework System includes:

  • Power supply
  • MX-RM3E soldering and rework hand-piece with cartridge removal pad,/li>
  • WS1 sleeper workstand for MX-RM3E
  • MX-PTZ Precision Tweezer hand-piece with cartridge removal pad
  • MX-W4PT Tip Saver workstand for MX-PTZ

MX-500DS Soldering / Desoldering System includes:

  • Power supply
  • MX-RM3E soldering and rework hand-piece with cartridge removal pad
  • WS1 sleeper workstand for the RM3E
  • MX-DS1 Desoldering Gun with cartridge removal pad
  • MX-W5DS Tip Saver workstand for the MX-DS1
  • MX-RM8E: Desoldering Cord
  • MX-DAH4: ESD Air Hose with Fitting
  • AC-CB1: Cleaning Brush
  • AC-CB2: Tube Cleaning Brush
  • MX-DCF1: Chamber Liner and Filter Pack
  • AC-TC: Desoldering Tip Cleaner

MX-500AV Soldering / Rework System includes:

  • Power supply
  • MX-H1-AV: Metcal Advanced™ Hand-piece, Soldering and Rework with one cartridge removal pad
  • MX-W1AV: Workstand for Metcal Advanced™ Hand-piece, Soldering and Rework with one sponge and one brass pad

MX-500AV Soldering / Rework System includes:

  • Power supply
  • MX-H2-UF: Metcal UltraFine™ Hand-piece, Soldering and Rework with one cartridge removal pad
  • MX-W1AV: Workstand for Metcal Advanced™ Hand-piece, Soldering and Rework with one sponge and one brass pad

Soldering and SMT Rework Systems are offered by MELSS
