Instrument Power Supplies

Model 6310A series Programmable DC Electronic Load

  • Power rating: 200W, 100W×2(Dual), 30W & 250W, 300W, 350W, 600W, 1200W
  • Wide range 0~600V operating voltage
  • Up to 8 channels in one mainframe
  • Dynamic loading with speeds up to 20kHz

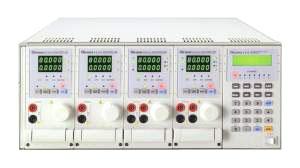

Model 6330A series High Speed DC Electronic Load

  • Power rating: 200W, 100W×2(Dual), 30W & 250W, 300W, 350W, 600W, 1200W
  • Improve operating speeds of load for auto test system integration
  • Synchronous paralleling control
  • Synchronous dynamic loading up to 7000W

Model 63200 series High Power DC Electronic Load

  • Power rating: 2.6kW,5.2kW,6.5kW,10kW,10.4kW,14.5kW,15.6kW
  • Voltage range: 0-80V, 0-600V, 0-1000V
  • Master/Slave paralleling control (up to 93.6kW)
  • Synchronous dynamic loading control

Model 63600 series Programmable DC Electronic Load

  • Power rating: 100W×2(Dual), 300W, 400W
  • Sweep function for dynamic loading from 50Hz to 10kHz
  • User Defined Waveform function
  • CZ mode for turn on capacitive load simulation

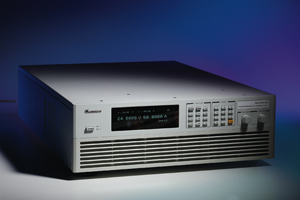

Model 62000H series Programmable DC Power Supply

  • 5kW/10kW/15kW/up to 1000V
  • Easy Master/Slave Parallel & Series Operation up to 150kW
  • Voltage & Current Slew Rate Control
  • Auto Sequencing Programming: 10 Programs/100 Sequences

Model 62000H-S series Solar Array Simulator

  • 5kW/10kW/15kW/up to 1MW
  • Fast Transient Response Solar Array Simulation
  • Build-in Dynamic MPPT Test Profile for EN50530/ Sandia / CGC-GF004/NB-T32004
  • Real-World Weather Simulation
  • Support up to six-channel SAS control for multi-MPPT testing
  • Shadowed I-V curve output simulation (up to 4096 data points)

Model 62075H-30N Ultra-High Stability DC Power Supply

  • 7.5kW/up to 60V
  • Current Stability:2.5mA/10ppm
  • High Resolution Current Programming & Measurement: 20 bit DAC & 24 bit ADC
  • Ethernet/LXI Interface
  • Magnet power supply application

Model 62000B series Modular DC Power Supply

  • 1.5kW Per Module up to 120kW System
  • N+1 Redundancy
  • Hot Swappable
  • Burn-in and plating application

Chroma Power Supply Instrument offered by MELSS

Model 62000P series Programmable DC Power Supply

  • 600W / 1200W / 2400W / 5000W
  • Wide Range of Voltage & Current Combinations with Constant Power
  • Auto Sequencing Programming: 10 Programs / 100 Sequences / 8 bit TTL
  • ISO 16750-2 Starting Profile Testing

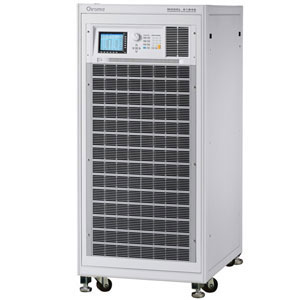

Model 61500 series Programmable AC Source

  • Output power rating: 500VA ~ 90kVA
  • Capable of Power Line Distortion simulation
  • Harmonics and inter-harmonics waveform function
  • Meet IEC 61000-3-2/3-3/4-11/4-13/4-14/4-28 test requirements

Model 61600 series Programmable AC Source

  • Output power rating: 500VA ~ 18kVA
  • Output frequency: 15Hz ~ 1.5kHz (61611/61612)
  • Capable of delivering high CF current
  • Provide single and three phase output capability (61611/61612)

Model 61700 series Programmable AC Source

  • Output power rating: 1.5kVA ~ 12kVA
  • Three phase output voltage 0 ~ 300V
  • Output frequency: 15Hz ~ 1.2kHz
  • Capable of Power Line Distortion simulation

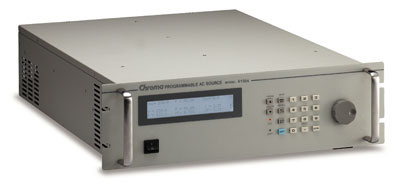

Model 6400 series Programmable AC Source

  • Output power rating: 1.5kVA ~ 9kVA
  • Output frequency: 45Hz ~ 1kHz
  • Output voltage: 0 ~ 300V
  • Low output distortion < 0.3%

Model 6500 series Programmable AC Source

  • Output power rating: 1.2kVA ~ 9kVA
  • Programmable Sine/Square/Clipped Sine waveform capability
  • Capable of Power Line Distortion simulation
  • 30 built-in harmonics waveform

AC Electronic Load

Model 63800 series Programmable AC and DC Electronic load

  • Power rating: 1800W, 3600W, 4500W
  • Parallel / 3-Phase function (AC mode only)
  • Constant & Rectified load modes for AC loading
  • CC, CR, CV, CP for DC loading

Power Analyzer

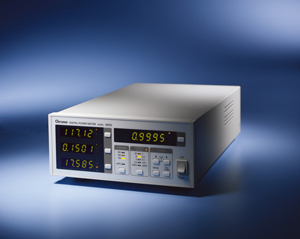

Model 66200 series Digital Power Meter

  • Ideal for Energy Star & High Precision Power Measurement
  • Meet EN 50564:2011/IEC 62301:2011/SPEC Power requirement for power measurement

Model 66203/66204 Digital Power Meter

  • Support power measurement for various wiring mode (1P2W/1P3W/3P3W/3P4W)
  • Meet EN 50564:2011/IEC 62301:2011/SPEC Power requirement for power measurement
  • Voltage range: 15V ~ 600V / Current range: 5mA ~ 20A
  • Support external shunt and CT for high current measurement
