Memory Device Programmers

XELTEK Inc.

  • Rated as the #1 programmer provider in the industry with solutions for a wide range of programming applications
  • Offers the largest device library for both parallel and serial programmers in the industry
  • LabVIEW driver is available for selected ISP models
  • Advanced stand-alone programming technology for efficient production environment

USB Interfaced Ultra-Fast 144-pin Stand-Alone Universal Programmer

  • Devices Supported: EPROM, paged EPROM, parallel and serial EEPROM, FPGA configuration PROM, FLASH memory (NOR), BPROM, NVRAM, SPLD, CPLD, EPLD, firmware HUB, microcontroller, MCU
  • Package: DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP, TSOPII, PSOP, TSSOP, SON, EBGA, FBGA, VFBGA, uBGA, CSP, SCSP
  • PC interface:  USB2.0 (High speed)
  • Stand-alone memory: Compact FLASH card

Key Features:

  • Built with a universal 144-pin driver that is compatible with various package types
  • Stand-alone (No PC required) and PC hosted mode available
  • PC mode: The programmer is controlled by a PC via a high-speed USB cable for chip programming
  • Stand-alone mode: The programmer is controlled and operated via a built-in keypad and LCD display
  • Project files are stored in a CF (compact flash) card for convenience and data security
  • Operates multiple units to construct a concurrent multi-programming system. Cluster 1-15 units for flexible volume production>**
  • In-system programming ( ISP/ICP)capability
  • Support devices with Vcc from 1.2V – 5V
  • Support files up to 256 GB
  • Over-current and over-voltage protection for safety of the chip and programmer hardware
  • Compatible with Windows XP/Vista/7/8 (32/64 bit)
  • Only IC manufacturer approved programming algorithms used for high reliability
  • Vcc verification (at +5% ~ -5% and +10% ~ -10%) enhances programming reliability
  • Includes the following advanced and powerful software functions:
  • Production mode starts chip operation the moment the chip is inserted properly
  • Project function simplifies processes such as device selection, file loading, device configuration setting, program option, and batch file setting into a single step
  • Password for project files can be set for volume production control
  • Batch command combines device operations like program, verify, and security into a single command at any sequence
  • Serial number generators are available as standard or customer-specific functions
  • Log file is useful for quality tracking
Memory

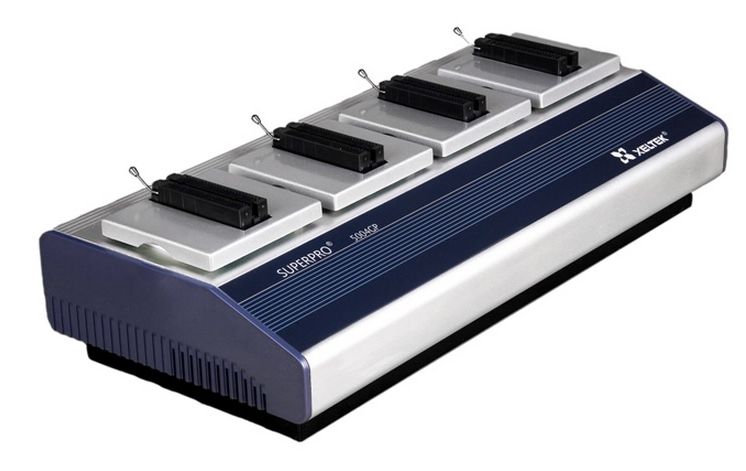

Ultra-high Speed Universal Gang Programmer

  • Devices Supported: EPROM, paged EPROM, parallel and serial EEPROM, FPGA configuration PROM, FLASH memory (NOR), BPROM, NVRAM, SPLD, CPLD, EPLD, firmware HUB, microcontroller, MCU
  • Package:  DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP, TSOPII, PSOP, TSSOP, SON, EBGA, FBGA, VFBGA, uBGA, CSP, SCSP
  • PC interface: USB2.0 (High speed)
  • Stand-alone memory:Compact FLASH card

Key Features:

  • Built with 144 universal pin-drivers for support of today’s most complex devices
  • 4 independent programming modules operating concurrently for high speed programming
  • High-speed programming with USB interface
  • In-system programming (ISP/ICP) capability
  • Support devices with Vcc from 1.2V – 5V
  • Vcc verification (at +5% ~ -5% and +10% ~ -10%) enhances programming reliability
  • Includes the following advanced and powerful software functions:
  • Project function simplifies processes such as device selection, file loading, device configuration setting, program option, and batch file setting into a single step
  • Password for project files can be set for volume production control
  • Batch command combines device operations like program, verify, and security into a single command at any sequence
  • Serial number generators are available as standard or customer-specific functions
  • Log file is useful for quality tracking

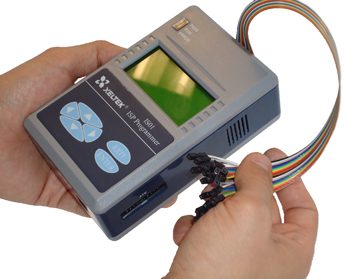

In-System (ISP) Programmer

  • Supports all common ISP protocol (i.e. I2C, SPI, UART, BDM, MW, JTAG, CAN, RS232). Contact Xeltek for more details
  • Provides VDD (0.5A) output line and VPP(0.2A)
  • Operating temperature 10-50ºC
  • ESD protection – I/O level is adjusted via SuperProIS01 software (1.5V ~ 4V)
  • Online software operates the programmer and manages offline project via USB2.0

Key Features:

  • High programming speed selectable: Adapt to cable length and load feature for target board
  • Supports online (USB2.0 high-speed) and offline mode simultaneously
  • Supports all common ISP protocol (i.e. I2C, SPI, UART, BDM, MW, JTAG, CAN, RS232)
  • Contains Automatic Test Equipment (ATE) interface for automated operation
  • Built-in overcurrent protection function
  • Field proven for R&D, mass production and individual in-system programming projects
  • The programmer operates in either PC hosted mode or stand-alone mode
  • Under PC hosted mode, a PC controls the programmer via a high-speed USB2.0 connection for device programming
  • Under stand-alone mode, the user controls the programmer via a build-in LCD screen and keypad
  • A SD card stores project files
  • Compatible with Windows XP/Vista/7/8 (32/64 bit)
  • Includes the following advanced and powerful software functions:
  • The project function simplifies processes such as device selection, file loading, device configuration setting, program option, and batch file setting into a single step
  • Password protection provides security for project files and production volume control
  • The batch command combines device operations like program, verify, security into a single command at any sequence
  • Serial number generators are available as standard or customer-specific functions
  • Log file provides quality tracking

Automated Programmer

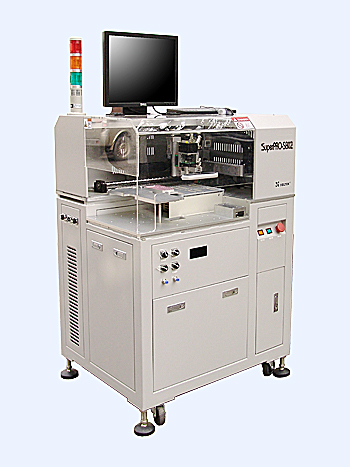

SuperBOT-2

16-Socket Automated IC Programmer

SuperBOT-2 is designed for large-scale production of electronic products. The device has accurate auto chip placement, auto programming, and a whole process of chip packaging, thus replacing traditional manual operations. Programming houses can benefit from improved production efficiency and eliminate majority of human errors during the IC programming process. In addition to what the first generation SuperPro-SB01 offers, this model specialises in eMMC, NAND FALSH, serial FLASH/E of 2 PROM and other large capacity memory devices. Throughput capacity is increased by nearly 30 times compared to SuperBOT-1.

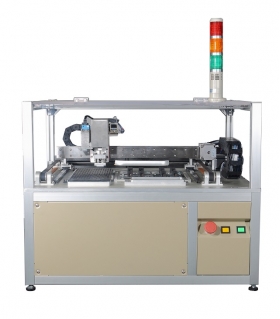

SuperBOT-4

Automated IC Programmer – up to 16 Sockets

The compact SuperBOT 4 automated programmer is ready to go to work for you. With its tabletop design, the SuperBOT 4 will fit almost anywhere. Suitable for most device memories (NAND, eMMC, MCU and others), the SuperBOT 4 can output up to 600 units per hour. The SuperBOT 4 is a great addition to the mid-sized manufacturer needing automation but not quite the scale of the larger programmers.

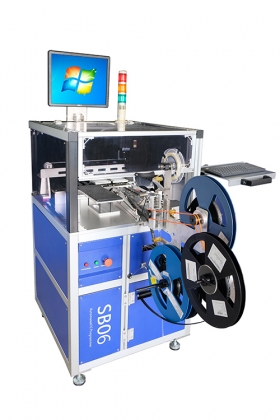

SuperBOT-6

Fully Automated IC Programmer – up to 16 Sockets

Pave the way to the future with our SuperBOT 6 ready-to-use automated universal IC programmer. Built with an adjustable automatic tape in/out handler the SuperBOT 6 is ready to take on any tape & reel production job. The SuperBOT 6 is designed to be affordable and reliable to keep manufacturing costs low. With a footprint of just over 0.5㎡, the SuperBOT 6 is compact enough to fit in most working spaces. Today, success in business depends on speed. The SuperBOT 6 can output up to 1,600 units per hour. SuperBOT 6 offers a built in tray option that can be used for tray in to tape out or vice versa.
