We offer World-Class Telecom &
Photonics Solutions

Telecom

Our Telecom product portfolio offers Test Measurement Automation Solutions for optical fibre, cable, passive devices, production, in addition to offering physical layer test measurement solutions for the enterprises, telcos, network equipment manufacturers, contractors, utility companies, defence and government PSUs..

Optical Preform Analysers and Test Systems (Geometry, Spectral, N.A, Dispersion, OTDR) for characterising the geometric and transmission properties of fibres, Fibre Handling, Automation Solutions to help minimise measurement time and cost.

Learn More
OSP Optical Test Instruments, Laser Source, Power Meters, OTDRs, Variable Attenuators, Cleaning Kits and FTTx Solutions.
Learn More

Fibre Optic Connector End Face Testing and Inspection.

Learn More

Characterisation of Fibre Optic Cable Assemblies or Passive Fibre Optic Components in production or laboratory environments. High performance Reference Cables.

Learn More

Component test platform, Benchtop tunable lasers, Passive component testers, optical spectrum analyzers and tunable filters with adjustable bandwidth.

Learn More

Photonics

Our Photonics product portfolio offers the building blocks of Photonics Research, Optical Test Measurement and Simulation Solutions for the research and development community in leading universities, academic, defence, space and atomic energy institutions, with solutions from renowned companies in this domain.

Imaging Systems, Optomechanics, Motion Control, Optics, Optical Fibres, Light Sources, Light Analysis, Wide Band Spectrum Analysers, Beam Characterisation, Modular Tweezers.

Learn More
UV and LED Sources for spot and area curing applications. Fluorescence Illuminators.
Learn More
Optical Programmable Filter (C, L or C+L-band) for extreme fine control of filter characteristics including centre wavelength, bandwidth, shape and dispersion and attenuation. Filter bandwidth variable from 10 GHz upto 9 THz.
Learn More

Optical Prism Coupler System for accurately measuring both thickness and the refractive index/birefringence of dielectric and polymer films as well as refractive index of bulk materials.

Learn More

State-of-the-art hardware and software to provide access to raw ultrasound data per channel – for biomedical imaging, intervention guidance and therapy, NDT/NDE for materials testing and earth sciences

Learn More

Optical Preform Analysers, Refractive Index Profilers, Combined Spectral and Geometry, Dispersion Test Equipment and OTDRs.

Learn More

Fibre Bragg Gratings (FBG), FBG Arrays & Cables, FBG Sensors.

Learn More
FBG Interrogators, Spectrometers (Raman, Absorption, Fluorescence) Phase Masks, Transmission Gratings.
Learn More

Fibre Optic (Pressure, Stress, Strain, HERO) Sensors and Signal Conditioners used in various medical, process control and R&D applications.

Learn More

UV Curing

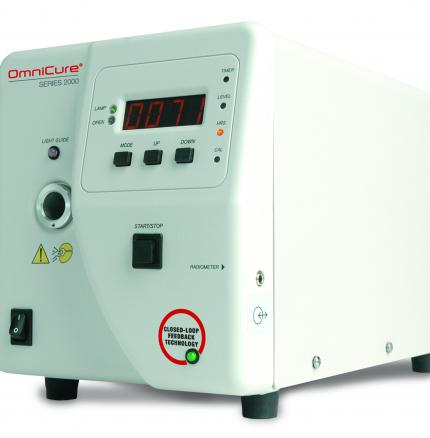

The spot UV curing system features proprietary closed-loop feedback control technology, which automatically monitors and maintains optical output for a repeatable curing process. It has a shutter with a 30 ms response time, patented Intelli-Lamp technology, and Industry 4.0 communication capabilities with an advanced graphical user interface (GUI) and logic-based StepCure program  The OmniCure S2000 Elite spot UV curing system automatically monitors and maintains optical output for a repeatable curing process.

  • Simplify Your UV Curing Process with the Easy-to-use S2000 Elite UV Curing System
  • Improve Manufacturing Productivity with Unmatched UV Curing Process Control
  • Streamline Your UV Curing Process with Maximum Control and Connectivity
  • Watch Video
UV Curing system
UV Curing system

Features

Remote Control and Monitoring: Access the OmniCure S2000 Elite from almost any web enabled device for in-depth control and monitoring capabilities.

Field Configuration: Re-configure your system in-field with minimal downtime through user replaceable lamp types and optical filters.

Closed-Loop Feedback (CLF): UV light delivery regulation enabling the most stable and reliable curing process.

Intelli-lamp Technology: 2000-hours of lamp life and up to 4000-hour typical lifetime through constant lamp monitoring.

Intelli-Tap Keycards: Advanced process control and security through NFC enabled Supervisor and Admin Keycards.

Light Delivery Equivalency: Identical optical power and optical spectrum to the Original S2000 allows to upgrade your equipment without changing your process.

Touch Screen UI: 4.3” LCD touch screen display enables deep and intuitive system control.

StepCure PLC Controller:  Powerful StepCure program with PLC control capability and tight process control.

Benefits

Improved productivity by reducing cycle time.

The OmniCure S2000 Elite system includes proprietary Closed-Loop Feedback technology, which automatically monitors and maintains its optical output for a repeatable curing process.  A new hih-speed shutter with a 30ms response time ensures the pecise dose for any application every time, eve for the shortest exposure times.  Excelitas’ patented Intelli-Lamp®  technology maximizes lamp-life while maintaining hours of use by tracking the lamp’s parameters.  To minimize down time, the effective lamp life remaining is provided at all times based on the system calibration state, lamp state and output parameters.

Ease of Use

The S2000 Elite offers improved process control and security than its predecessor, making the system easier to use. Featuring a 4.3” LCD touch screen display, the S2000 Elite allows for simple navigation and access to powerful programming elements and monitoring of all curing related statuses, right at the user’s fingertips.  Remote management and monitoring is available from any device through the WEB GUI expanding all the options and features available from the system’s fascia to a larger laptop or tablet screen.  Intelli-Tap NFC (Near-Field Communication) technology enables easy and powerful wireless process control and security features such as clearing faults, locking, and unlocking system parameters and advanced cure process inputs through a tap of the admin and supervisor keycards on the designated system’s front fascia area.

Flexibility

The S2000 Elite is one of the most versatile UV Spot curing systems on the market.  Field replaceable optical band pass filter types are ideal for developing new manufacturing processes and selecting the right UV light cure compound.  Choose from seven difference standard filter options or use OmniCure SP (Special Request) program to develop a custom solution.

Connectivity

The S2000 Elite features advanced communications such as programmable PLC inputs and outputs, a USB connection, Ethernet to connect the system to a LAN and Near-Field Communication (NFC) for an easier and more powerful automation integration. For customers lookin to upgrade from original S2000 XLA, the new S2000 Elite has an available external PLC adaptor, which makes it a drop-in replacement and works with previous PLC and automation setups.  The S2000 Elite has been designed with Industry 4.0 in mind, with powerful and flexible communications capabilities and field upgradeable software to keep up with changing industry standards.

Photonics is a branch of Optics that involves the application of generation, detection, and manipulation of light in form of photons through emissiontransmissionmodulationsignal processing, switching, amplification, and sensing. Photonics covers a huge range of science and technology applications, including laser manufacturing, biological and chemical sensing, medical diagnostics and therapy, display technology, optical computing, silicon photonics.

The potential applications of photonics are virtually unlimited and include chemical synthesis, medical diagnostics, on-chip data communication, sensors, laser defense, an, to name several interesting additional examples.

MELSS has been in the forefront of Photonics since the dot com burst associated with some of the world leaders to offer customers in India the building blocks of Photonics, (Active passive Devices, Optomechanics, Integrated optics, Test Measurement, Imaging and Sensing solutions.”

“Photonics is a branch of Optics that involves the application of generation, detection, and manipulation of light in form of photons through emission, transmission, modulation, signal processing, switching, amplification, and sensing. Photonics covers a huge range of science and technology applications, including laser manufacturing, biological and chemical sensing, medical diagnostics and therapy, display technology, optical computing, silicon photonics.

The potential applications of photonics are virtually unlimited and include chemical synthesis, medical diagnostics, on-chip data communication, sensors, laser defense, an, to name several interesting additional examples.

MELSS has been in the forefront of Photonics since the dot com burst associated with some of the world leaders to offer customers in India the building blocks of Photonics, (Active passive Devices, Optomechanics, Integrated optics, Test Measurement, Imaging and Sensing solutions.”

Key Areas of Work

  • Quantum Optics and Photonics
  • Bio Photonics
  • Imaging
  • Optical Communication and Networks
  • Photonic Integrated Circuits
  • Fibers and Optical Sensors
  • Lasers and Applications
  • Optoelectronics
  • Emerging areas
