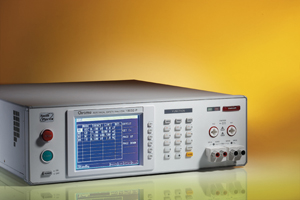

Model 19036 Wound Component EST Analyzer

  • Layer short and Hipot Test for motor
  • 5 in 1 composite analyzer scanner
    (ACW 、DCW 、 IR 、 IWT 、 DCR)
  • Hi-pot
    5kVac / 6kVdc
    High Speed Contact Check (HSCC)
  • 5kV Insulation Resistance test (IR)
  • Impulse Winding Test (IWT)
  • IWT high sampling rate (200MHz)
  • 10 channels 4-wire DCR test
  • L/Q with Chroma 3252(Option)

Model 19032/19032-P Electrical Safety Analyzer

  • 5 In 1 (ACV/DCV/ IR/GB/LC Test)
  • 500VA Power Rating
  • Twin-Port function
  • Open / Short Check(OSC)

Model 19035 series Wound Component EST Scanner

  • 4 in 1 (AC/DC/IR/DCR Test)
  • 8 Channel Scanner
  • 5kV Insulation Resistance test
  • High speed contact check

Choma’s Electrical Safety Testers offered by MELSS

Model 19020 series Multi-Channel Hipot Tester

  • 10/4 channels in one design.
  • 10 sets of sync output and measurement
  • 3 in 1 (AC/DC/IR Test)

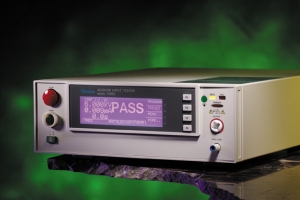

Model 19052/19053/19054 Hipot Tester

  • 3 in 1 (AC/DC/IR Test)
  • 8 / 4 channels scanner

Model 19055/19055-C Hipot Analyzer

  • CORONA discharge analyzer for motor
  • Hipot test
    ACW 5kV/100mA
    DCW 6kV/25mA
  • Insulation Resistance test
    5kVmax
    1MΩ~50GΩ
  • 500VA output
  • CORONA discharge detection
  • Floating output complies with EN50191

Model 19056/19057 series Hipot Analyzer

  • Up to10kVac / 20kVdc .
  • Provides high withstand voltage analysis

Model 19070 series Hipot Tester

  • Economy type.
  • 3 In 1 (ACV/DCV/IR Test
